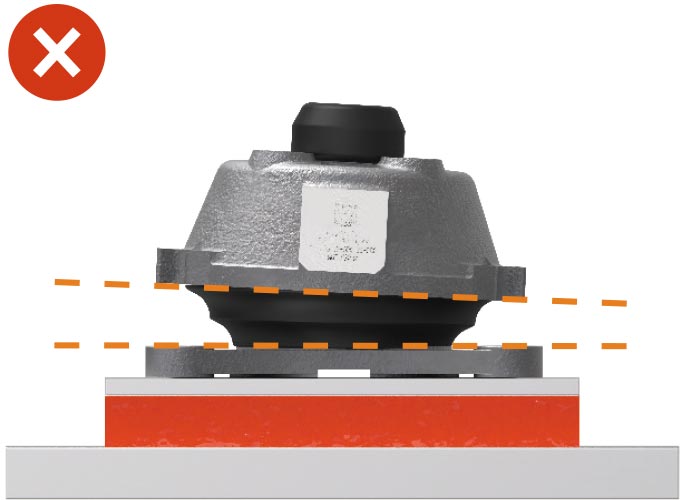

The installation of resilient mounts can be challenging. The rubber mount's base plate must be aligned perfectly parallel to the machine foot to ensure optimal vibration damping.
The traditional way to set up the resilient mount is to use the four adjustment bolts to eliminate any angle between the cap and the base plate and then to ﬁll the gap between the base plate of the mount and the foundation with two-component epoxy resin or a tailor-made steel-ﬁtted block.
The RotaChock® Mounting Plate offers an economical alternative to epoxy resin or tailor-made steel-ﬁtted blocks. The adjustment bolts in the RotaChock® Mounting Plate are used to eliminate any angle between the mount's foundation and base plate. Now the four RotaChock® at the corners are adjusted to fill the gap. The base plate, RotaChock® Mounting Plate, and machine foundation are then tightened together securely with four foundation bolts.
The mounting system can be readjusted at any time if required. Just loosen the foundation bolts and adjust the RotaChock® Mounting Plate to meet your target alignment. The time needed to ﬁnish a typical resiliently mounted machine can be cut back from several days to only a few hours.
The standard RotaChock® Mounting Plate is manufactured from S355 (DIN1.0570) and is Anti-Corrosion Enhanced for cost-effective corrosion protection.
Please check the RotaChock® Information Book for further details.
